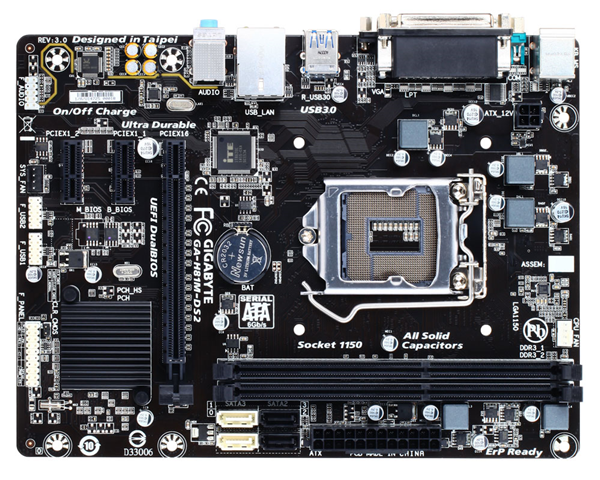

Mainboard GIGABYTE H81M-DS2

Mô tả chi tiết

Hãng sản xuất :GIGABYTE

Model :H81M-DS2
Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^®Pentium^® processors/ Intel^® Celeron^® processors in the LGA1150 packageL3 cache varies with CPU(Please refer "CPU Support List" for more information.)

Intel^® H81 Express Chipset

Bộ nhớ trong

DDR3 1600/1333 MHz, 2 x 1.5V supporting up to 16GB

VGA onboard

1 x D-Sub port, supporting a maximum resolution of 1920x1200

Maximum shared memory of 1 GB

Card mạng

Realtek^® GbE LAN chip (10/100/1000 Mbit)

Khe mở rộng

1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)

Chuẩn lưu trữ

2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices

2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices

Cổng giao tiếp trước và sau

1 x PS/2 mouse port/1 x PS/2 Keyboard port/1 x parallel port/1 x serial port/1 x D-Sub port/2 x USB 3.0/2.0 ports/2 x USB 2.0/1.1 ports/1 x RJ-45 port/3 x audio jacks (Line In, Line Out, Mic In)

Công nghệ tích hợp

Q-Flash, Xpress Install, APP Center, @BIOS, EasyTune, EZ Setup, USB Blocker, ON/OFF Charge

Kích thước

Micro ATX Form Factor; 22.6cm x 17cm

Phụ kiện đi kèm

(Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main ….)
